Hydraulic Removable Gooseneck Lowboy Trailer
HIPO 4 Axles Detachable Gooseneck Lowbed Trailer with Air Suspension is specifically designed for the efficient transportation of heavy and oversized equipment. Combining a detachable gooseneck for easy loading with an air suspension system that provides superior ride quality, this trailer is perfect for industries that require safe and smooth transport of large machinery, such as construction, mining, and heavy equipment transport
The gooseneck folds down to form a gentle slope, making it easier to load equipment without needing a crane. This design also improves stability during the loading process.
Our Features & Benefits
- Folding Neck Design: Hydraulic gooseneck detaches for smooth loading and unloading.
- 100 Ton Capacity: Supports heavy machinery like excavators, cranes, and bulldozers.
- Dolly Configuration: Improves stability and weight distribution during transport.
- Customizable Size: Designed to fit your specific needs.
- Air Suspension: Provides a smoother ride, protecting sensitive cargo.

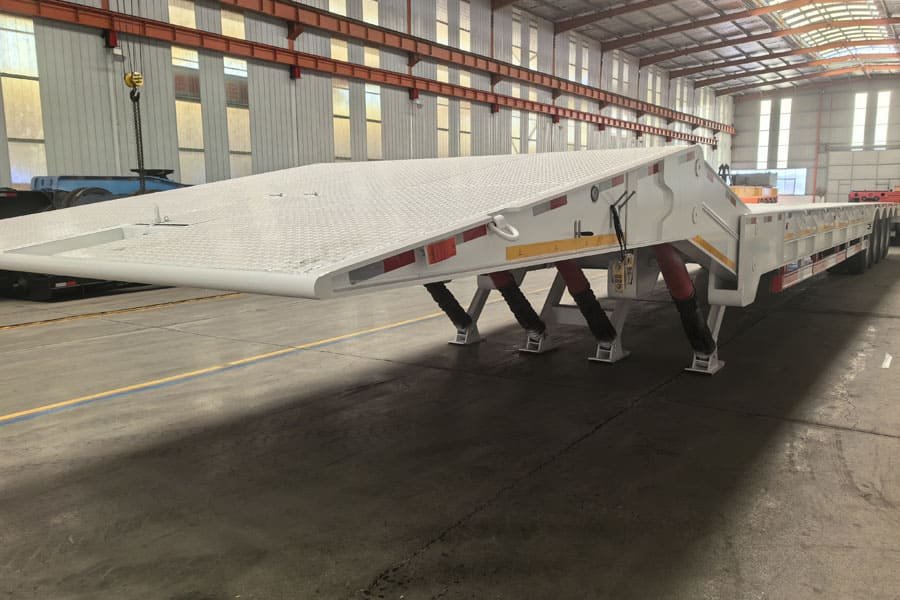

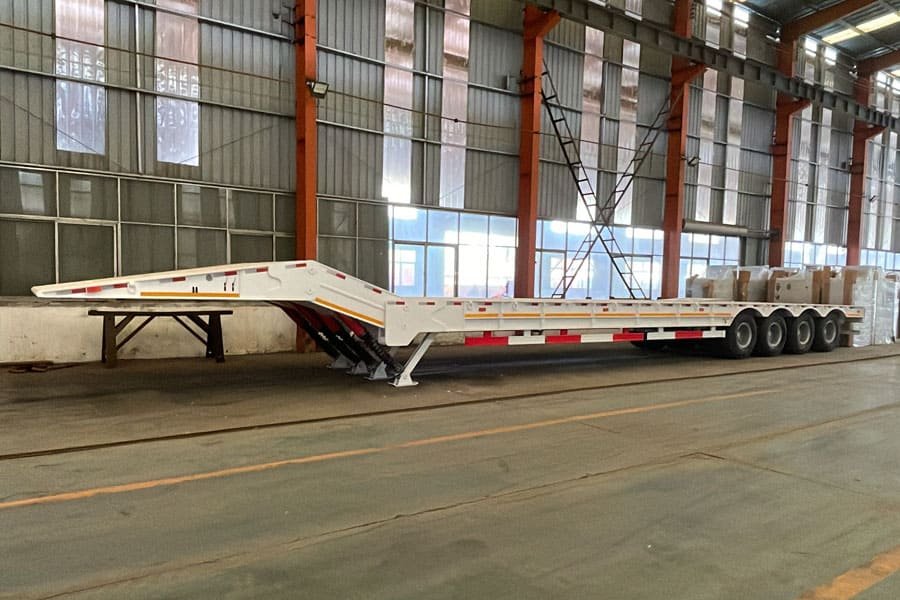

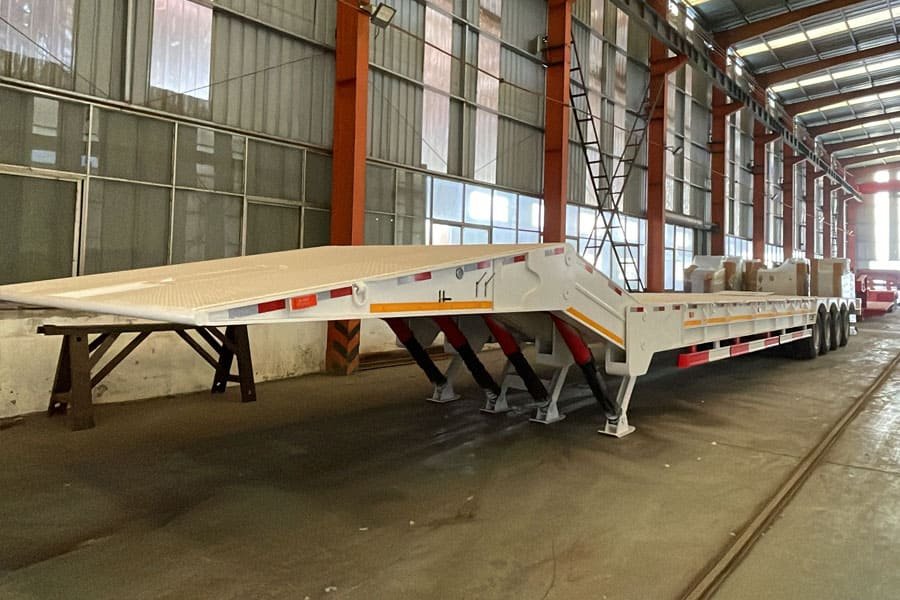

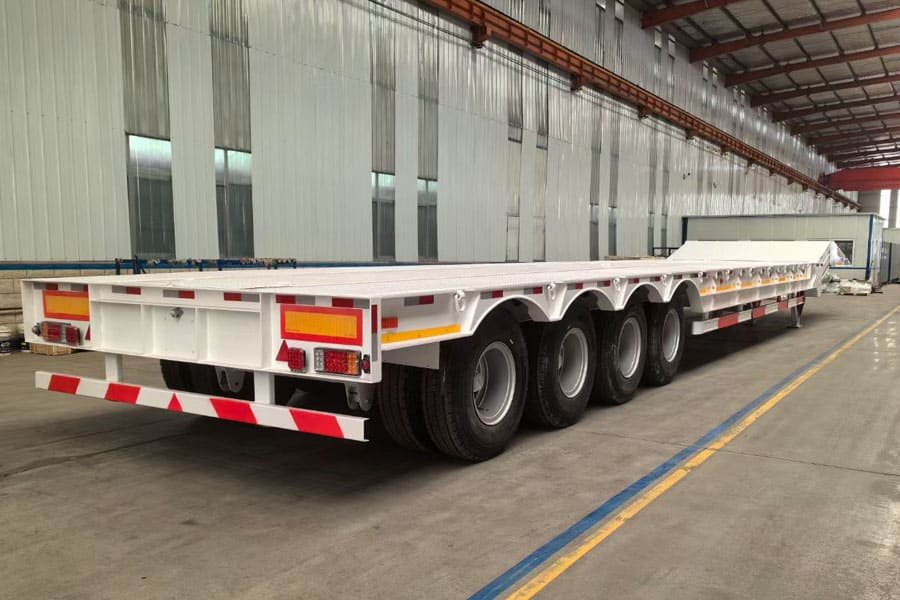

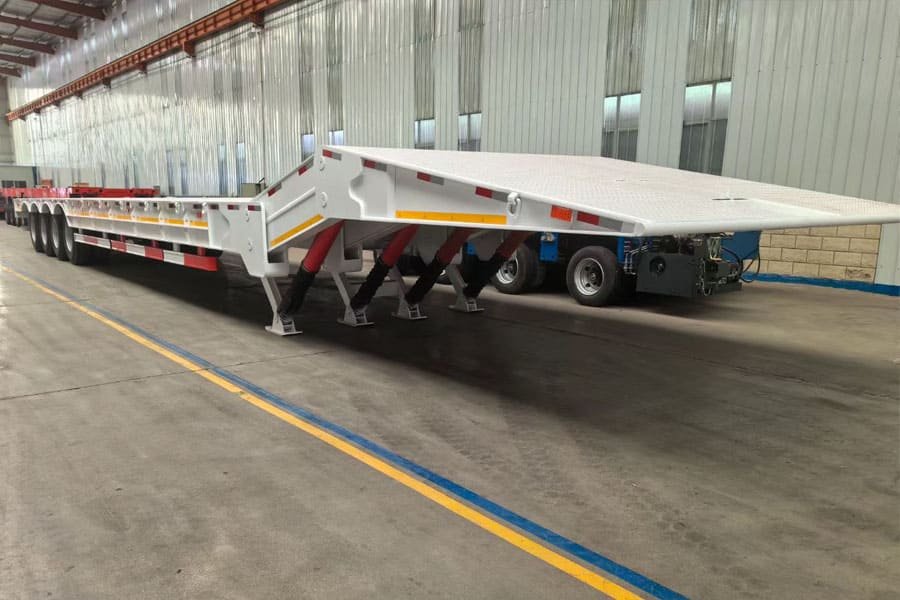

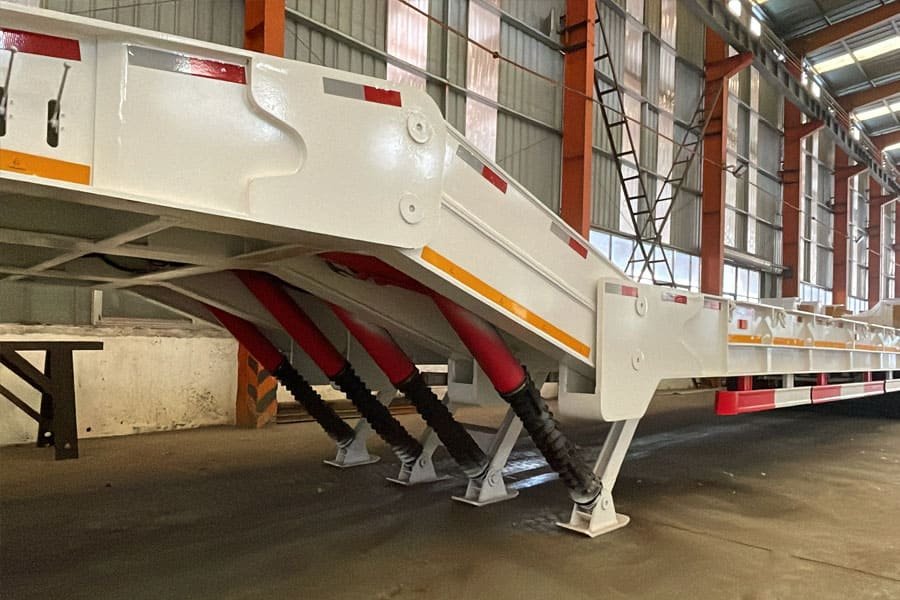

Product Gallery
Company From All Around The World Trust On Hipo
Product Specification
| Brand | HIPO 4 Axles Detachable Gooseneck Lowbed Air Suspension |
|---|---|
| Dimension | 16000 X 3000 X 3400mm or customized according to user needs |
| Loading platform height | 450mm-850mm |
| Payload Capacity | 100 Ton - 120 Ton |
| Gooseneck | Foldable Gooseneck |
| Main Beam | High strength steel |
| Loading platform | 5mm thick, checkered plate |
| Suspension | Air suspension |
| Axle | 4 units, 13 ton/16ton per axle |
| Tire | 12R22.5, 11.00R20, 12.00R20 Triangle/Double coin brand |
| Kingpin | 3.5 inch or 2 inch |
| Brake System | T30/30 chamber, WABCO emergency valve +ABS |
| Painting | Electrophoretic spray paint + Paint baking technology |
| Color | Optional |
Your Benefits
Fast, Safe Loading with Folding Gooseneck
The hydraulic foldable gooseneck allows you to load heavy equipment faster and more safely. It’s wider and stronger than standard goosenecks, providing extra stability for equipment with a high center of gravity. You can also adjust the height to handle uneven road conditions, ensuring smoother transport on challenging routes.
Low, Customizable Deck for Flexibility
The low deck design reduces accident risks during loading/unloading and improves control over taller, heavier equipment. It also keeps cargo under height limits for roads and tunnels. The deck’s length, width, and height can be customized, with extendable options for oversized loads.
Durable Steel for Heavy Loads
Built with high-strength HG60 or Q550 steel, the trailer offers greater load capacity and a longer service life. Whether moving 30 to 150 tons, it ensures secure transport, reducing maintenance costs and downtime.
Tested Load Capacity for Heavy Cargo
HIPO tests each trailer’s load capacity to make sure it can handle your heaviest cargo without any problems. This means you can trust it to perform safely and reliably on the road.
Independent Quality Testing
If it’s your first time buying from China, you can arrange for third-party companies like SGS or BV to inspect and test the trailer. This gives you extra confidence that the product meets your needs.
Global Quality Components
We use top brand components like BPW, Fuwa, and WABCO to ensure reliability and minimize breakdowns, resulting in less maintenance and more uptime for your business.
Interested In This Product? Contact Us For The Best Price Now
Success Stories
Recognized by Customers
For more than 25 years, Hipo has been a leader in Folding Gooseneck Lowbed Semi Trailer manufacturing, always providing customized solutions to meet our customers’ unique needs. We believe that a well-designed semi-trailer gets the job done and enhances your brand’s image.
Tailored To Your Requirements
Our engineers will work with you to develop a trailer specification that maximizes your transport operation. Contact our sales team for more information or to discuss your requirements.
